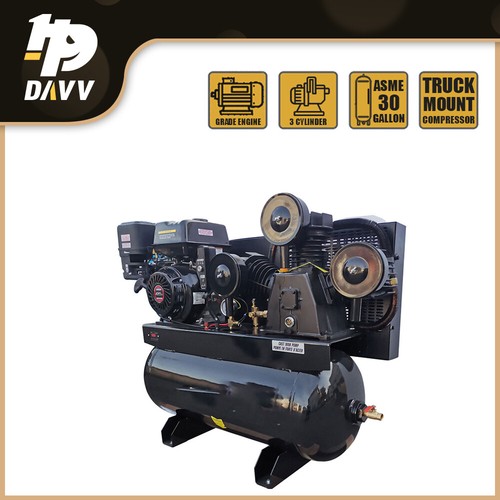

Gas Engine Piston Air Compressor

125PSI Gas Engine Piston Air Compressor 44cfm 3 Cylinder 30 Gallon 420CC 13HP Items Description Type:Gas piston compressor Model Power:13HP NO.OF CYL:3 Compression level: One-stage compression Speed（rpm）:880 Package Dimensions:43*17*38inch Packing Weigth: 353 lbs Pump: One Stage Air Outlet Size: 1/2"-18NPT Air Pressure: 125 psi Air Tank Capacity: 30 Gallons Air Flow capacity: 44 cfm Oil capacity: 57 oz.(1.7L) Oil Type: SAE30 non-detergent Air Compressor Oil Required Engine Idle Speed: 2000 RPM +_100 RPM Required Rotation viewed from PTO (power takeoff-the output shaft): Clockwise Using the Compressor Inspect Compressor, engine, pump and equipment looking for damaged, loose, and missing parts before set up and starting. If any problems are found, do not use equipment until fixed properly. Note: At the beginning of the day’s first use of the Air Compressor, check for air leaks by applying soapy water to connections while the Air Compressor is pumping and after pressure cut-out. Look for air bubbles. If air bubbles are present at connections, tighten connections. Do not use the air compressor unless all connections are air tight. The extra air leaking out will cause the compressor to operate too often, increasing wear on the compressor. Before starting the Compressor a. Follow the Set Up Instructions in the equipment manual to prepare the equipment. b. Follow the Set Up Instructions in the Engine manual to prepare the engine. c. Inspect all components of the setup. Make sure all nuts and bolts are tight. d. Fill the Engine with the proper amount and type of both fuel and oil. e. Fill the Compressor Pump with compressor oil following the Maintenance Instructions in this manual. WARNING TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING: Turn the Power Switch of the equipment to its “OFF” position, release tank air pressure, wait for the engine to cool, and disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM EQUIPMENT FAILURE: Do not use damaged equipment. If abnormal noise, vibration, or excess smoking occurs, have the problem corrected before further use. Follow all service instructions in this manual. The engine may fail critically if not serviced properly. Many maintenance procedures, including any not detailed in this manual, will need to be performed by a qualified technician for safety. If you have any doubts about your ability to safely service the equipment or engine, have a qualified technician service the equipment instead. Compressor Pump Oil Maintenance Check oil periodically for clarity. Replace oil if it appears milky or if debris is present, or every 6 months, or 100 hours of runtime, whichever comes first. In harsh environments such as high heat or high humidity, you will need to replace the oil more frequently. Change the compressor oil after the first hour of use to remove any debris. Advantages Powered by a 420cc overhead valve gas engine with electric start and recoil backup Heavy duty cast iron head and oil lubricated one-stage pump ASME certified tank, throttle control and unloader valve Cast iron cylinder for long life and durability Easy-to-read pressure gauge, shut off pressure switch, ASME certified tank pressure relief valve, and low oil engine shutdown for added safety Oil level viewing window and tank drain plug for easy maintenance Sturdy steel legs with truck bed mounting holes Mounting to a Truck Bed Easily mounts in truck or service vehicle. This Product are designed exclusively for the heavy duty needs of the mechanic shop, livestock operation and service truck. The two stage, cast iron, industrial air compressors work hard for serious industrial auto body and agricultural use. Equipped with an iron construction with cast cylinder sleeves, this pump head is designed for a long time use and is easy for maintenance. Multiple Applications The air compressor pump is widely used for chemical industry, light industry, textile, food processing, health, electronics, machinery, mining, construction, scientific research and other requirements of high-quality compressed air sector.Ideally suitable for variable air demand from low to medium volumes, also providing either direct driven from the motor or belt driven via pulleys from the motor. Payment transport About us contact us Service and Evaluation Payment
PayPal will allow you to pay by credit card, debit card, Check with PayPal for details.
We accept paypal ONLY, if you use the credit card to pay,the money will handle by the bank,and need many days to enter into our compnay's paypal accout.

Returns Accepted for this item if it's within 30 Days
